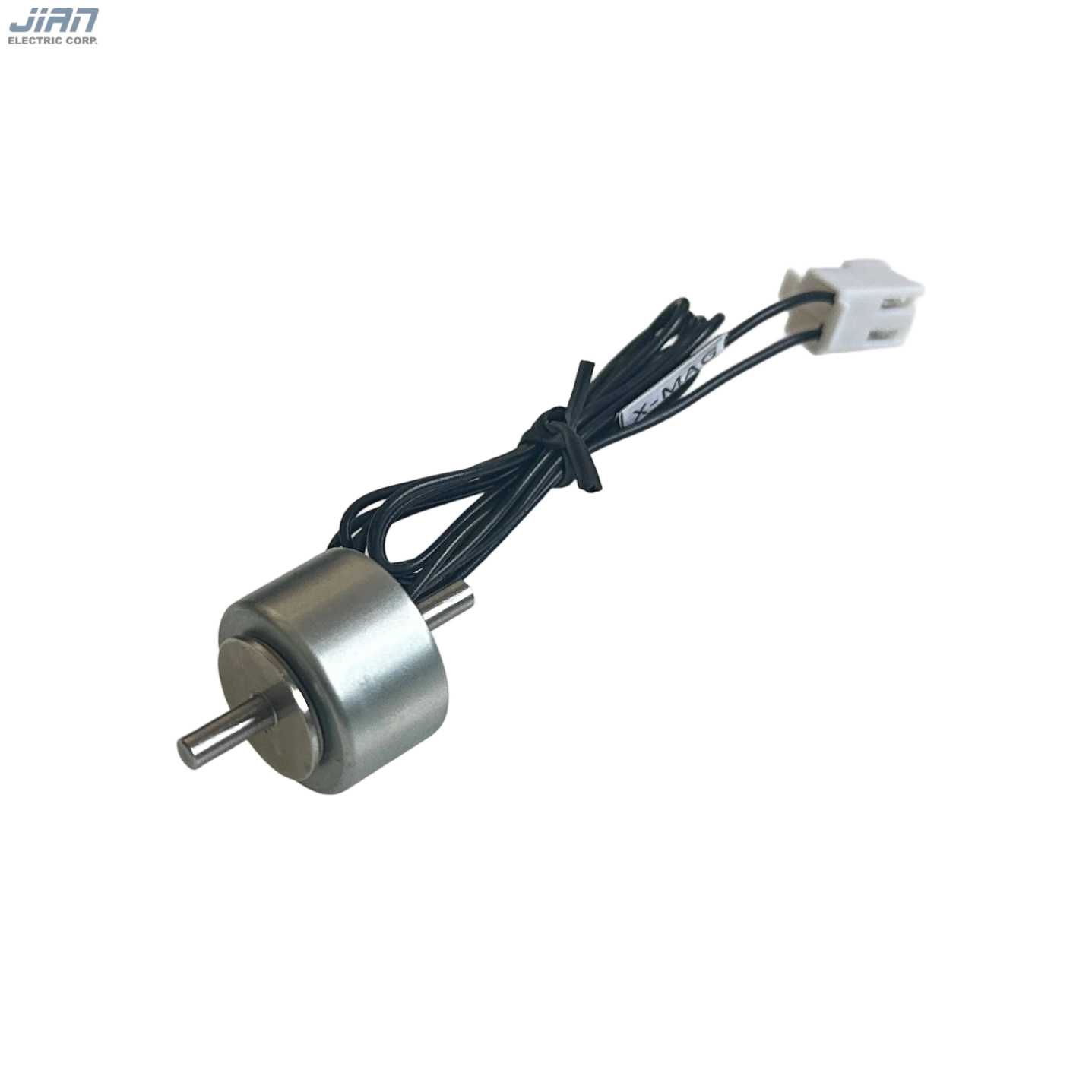

Oblate Cylindrical Solenoid Electromagnet JSD-1913

The Oblate Cylindrical Solenoid Electromagnet JSD-1913 is a powerful and efficient electromagnetic device designed for various industrial applications. With its oblate cylindrical shape and high magnetic strength, this electromagnet is ideal for tasks such as material handling, lifting, and sorting.

Size: φ19.3*11.5mm

Voltage: 12VDC

Resistance: 90Ω

Position ratio: 100%

Working stroke: 2mm

Power: 1.6W

Insulation resistance test: 100MΩ; 500VDC (at 20℃)

● Product specifications are diverse, and can be customized according to customer needs to provide the most suitable design and manufacturing.

Inquiry

Write a Review

Product Application

The oblate electromagnet uses a movable moving iron core with an armature. The magnetic field generated after power is fully utilized, and it is equipped with precise guides such as shaft sleeves, so that it can accurately position and quickly push and pull loads.

For example, it can play an important role in some industrial automation equipment that requires precise operation and rapid response.
