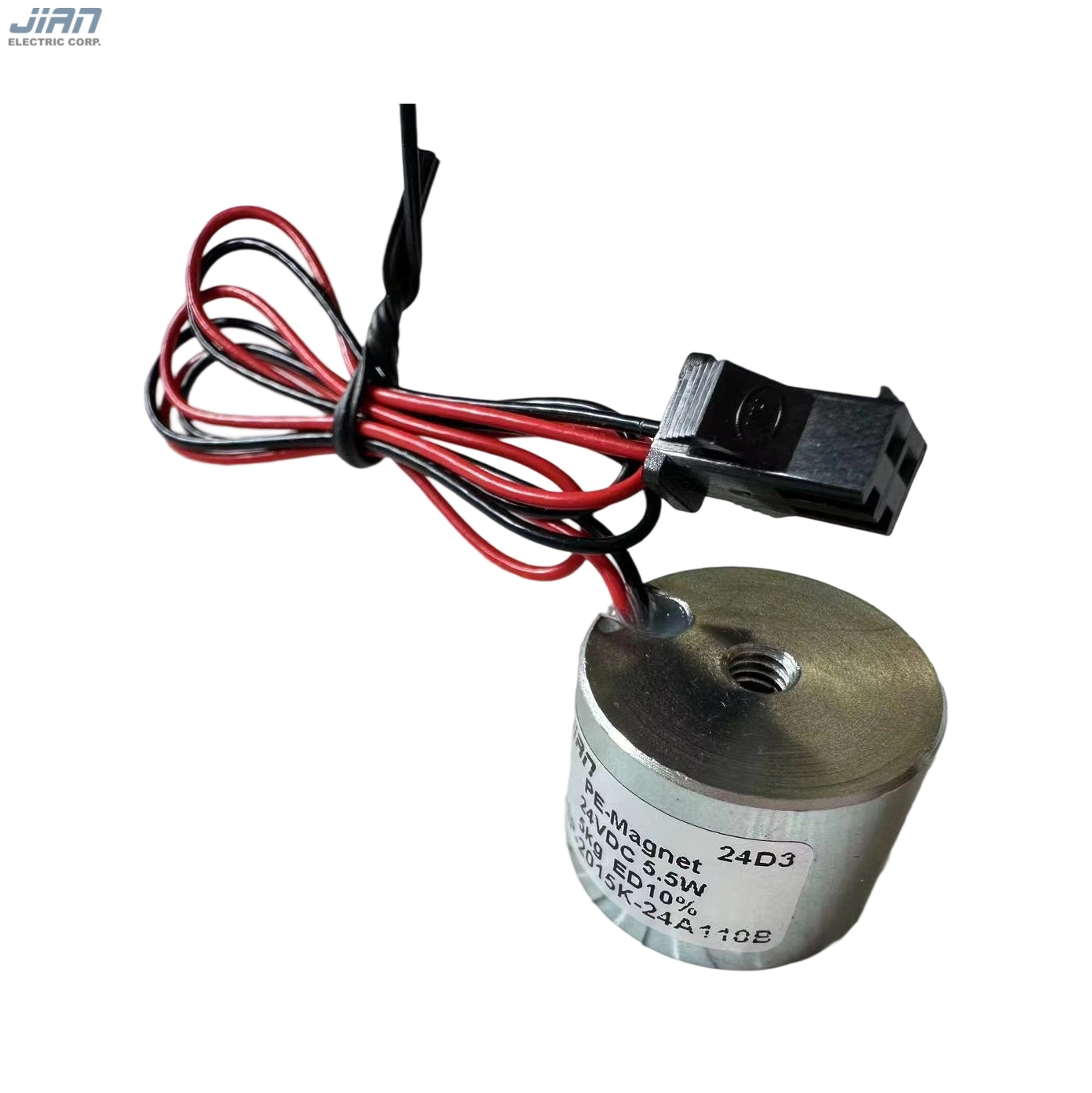

5.5W De-energized Electromagnet Magnet JSP-2015

The 5.5W De-energized Electromagnet JSP-2015 is a powerful device that can generate a magnetic field when energized. With a power rating of 5.5W, it is suitable for various applications requiring precise control over magnetic forces.

Size: D20*15

Voltage: 24VDC

Power: 5.5W

Resistance: 110Ω

Retention force: 0mm stroke, Pe-Force >5kg

Empty ratio: 10%

Insulation resistance test: 100MΩ; 500VDC (at 20℃)

● Product specifications are diverse, and can be customized according to customer needs to provide the most suitable design and manufacturing.

Inquiry

Write a Review

Product Application

The de-energized electromagnetic magnet has a strong suction force when it is de-energized.

When it is energized, the magnetic field generated by the current interacts with the magnetic field of the permanent magnetic material to release the attracted object. It is widely used in industrial automation, household, medical, automotive, high-speed rail, and other fields.
