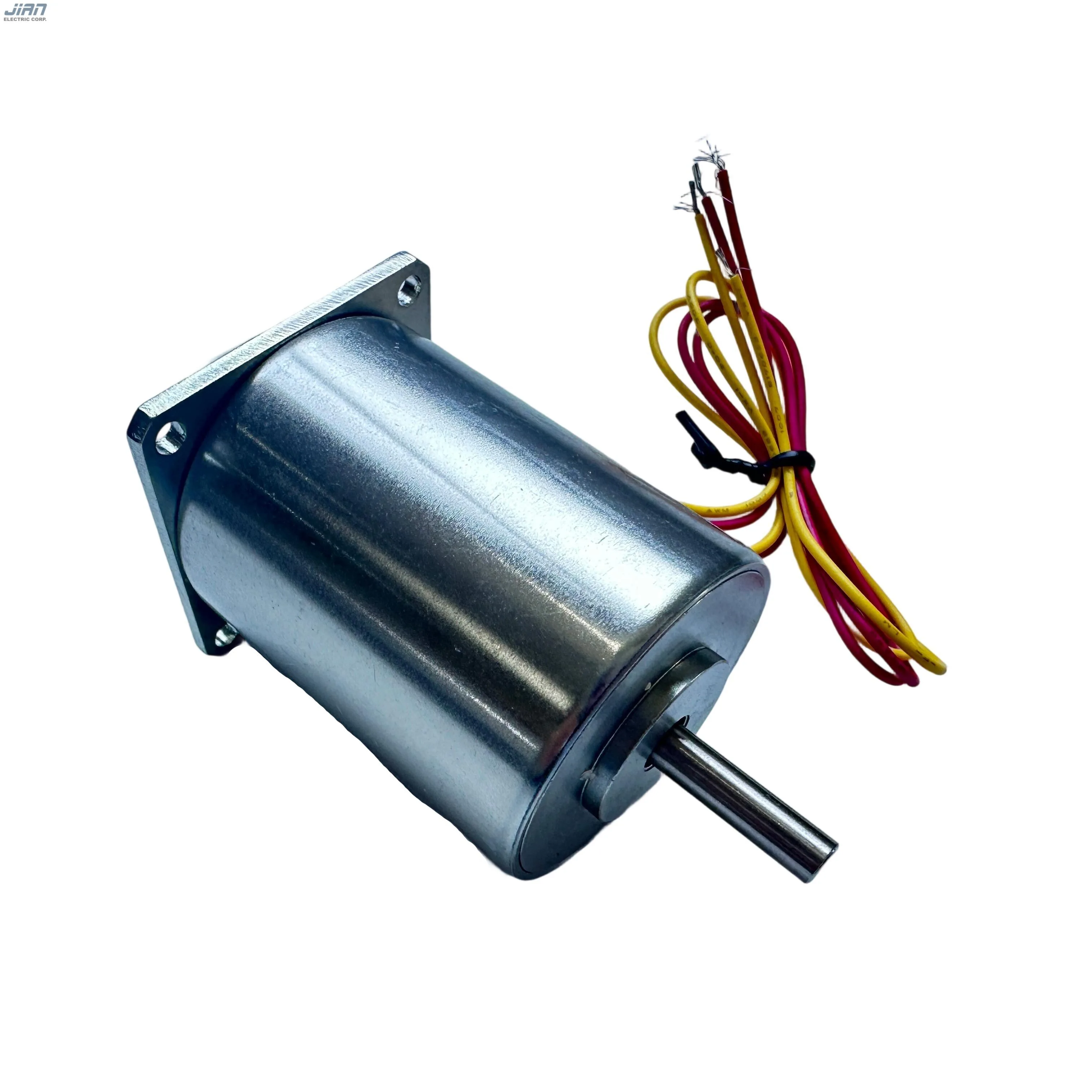

Dual-Pole Electromagnet with Round Tube JST-4055K

The Dual-Pole Electromagnet with Round Tube JST-4055K is a powerful magnetic device designed for industrial applications. Its innovative dual-pole design enhances the magnetic strength and stability, making it ideal for a wide range of heavy-duty tasks.

Size: φ40*30mm

Voltage: 24VDC

Resistance: 5Ω

Empty ratio: 5%

Working stroke: 0-5mm

Suction: Force>15N

Power: 119W

Insulation resistance test: 100MΩ; 500VDC (at 20℃)

● Diversified product specifications, non-standard customization can be made according to customer needs, providing the most suitable design and manufacturing.

Inquiry

Write a Review

Product Application

The cylindrical bidirectional electromagnet is also a holding electromagnet, which mainly has the characteristics of bistable state. It can hold the movable iron core (self-locking) at two different positions at the beginning and end of the stroke, and both ends have close output torques.

It can be held without continuously applying continuous current, which greatly reduces energy waste. It is widely used in CNC machine tools, automotive industry, home appliances, industrial production and other fields.
