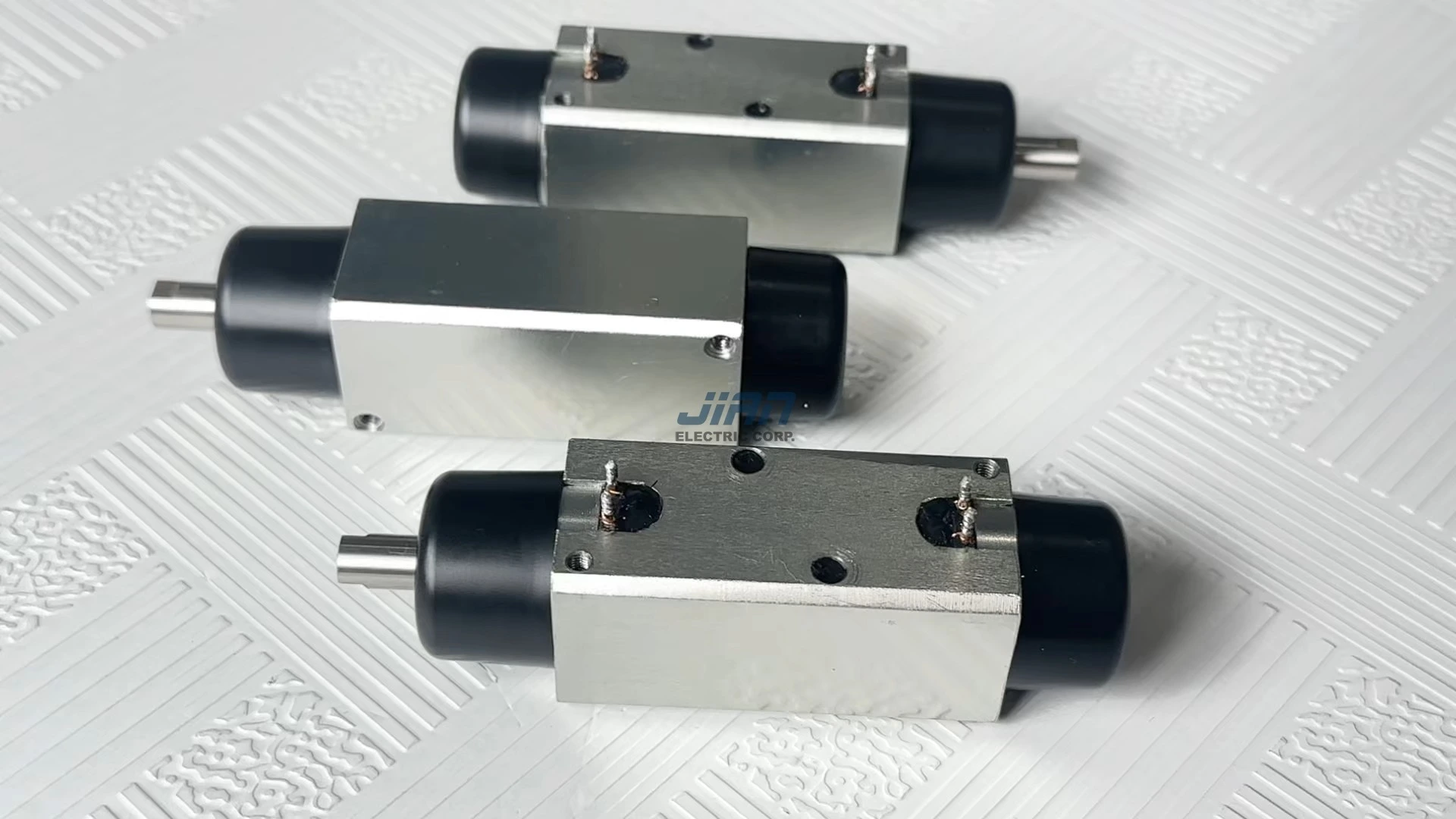

Soldenoid 24VDC 7W Reverse function 0mm Force >3kg (30N) | JIANYUAN

Linear solenoid, fast response speed, low power consumption, high reliability

Bistable linear solenoid reverse electromagnet technology:

1. The built-in permanent magnet achieves bistable function (with power consumption only during the switching moment), reducing power consumption by over 60%.
2. The magnetic circuit adopts a "permanent magnet + electromagnetic" composite design, with a strong reverse switching force (up to 1.5 times that of ordinary electromagnetic coils of the same size).

3. Suitable for battery-powered or low-power consumption scenarios.

Brand Name:

JIANYUAN

Model number:

JSTK-2555P

Customization:

Support customization

Place of Origin:

China

Payments:

L/C,D/A,T/T,MoneyGram,OA

Lead Time:

1-100(pieces):15(days),101-1000(pieces):30(days),>1000(pieces):To be negotiated(days)

shipping:

Express · Ocean freight · Land freight · Air freight

Inquiry

Write a Review

Max. Power

DC6V-48V

Dinension

97*18*5

Solenoids

Bistable Linear Solenoid

Structure

Frame Solenoid

Application

Suitable for precise direction switching scenarios in automated control systems

Force

0mm >3KG(30N)

Customized support

Weight (KG)

255g

Product About Bistable Linear Solenoid

Bistable linear solenoid is an important component in automated control equipment.

Linear solenoid actuator is an electromagnetic actuating component that enables the core (or armature) to move in both directions by reversing the direction of the electromagnetic force. It can actively control the "forward action-reverse reset" or "bidirectional drive" of the mechanical structure, and can widely replace traditional motor + reducer, pneumatic cylinder, etc. solutions. It is suitable for precise direction switching scenarios in automated control.

Customer Customization Service

Support for personalized settings of the working mode, clamping and releasing force, and installation dimensions. For special scenarios (such as high-temperature resistance, low-temperature resistance, corrosion resistance), a stainless steel housing with high-temperature enamel wire can be adopted.

Installation

Various installation structures can be selected according to the space of the equipment, such as threaded, pin-type, and snap-fit fasteners.
