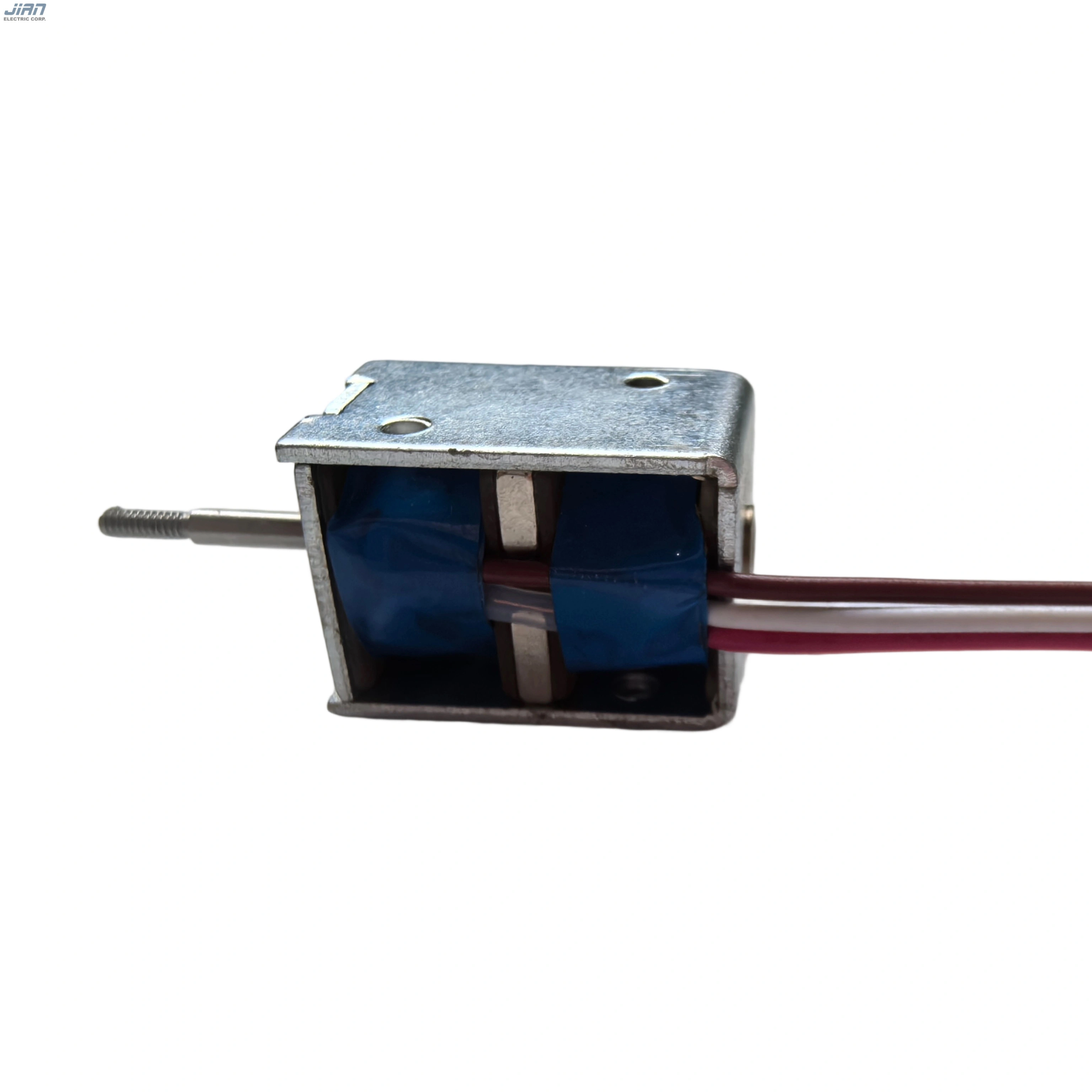

Bistable type Magnetic protection bidirectional electromagnet JSKD-0621

The Bistable type Magnetic protection bidirectional electromagnet JSKD-0621 is a versatile electromagnet that can provide reliable protection in both directions. Its bistable design allows for efficient operation and easy installation in a variety of applications.

Size: 21*14.9*12.9mm

Voltage: 24VDC

Resistance: 0.25Ω

Empty ratio: 5%

Working stroke: 6mm

Suction force: Force>6N;

Power: 24W

Insulation resistance test: 100MΩ; 500VDC (at 20℃)

● Product specifications are diversified and can be customized according to customer needs, providing the most suitable design and manufacturing.

Inquiry

Write a Review

Product Application

The frame magnetic bidirectional electromagnet is also a holding electromagnet, which mainly has the characteristics of bistable state. It can hold (self-lock) the movable iron core at two different positions at the beginning and end of the stroke, and has close output torque at both ends.

It can be held without applying continuous current, which greatly reduces energy waste. It is widely used in CNC machine tools, automobile industry, home appliances, industrial production and other fields.
