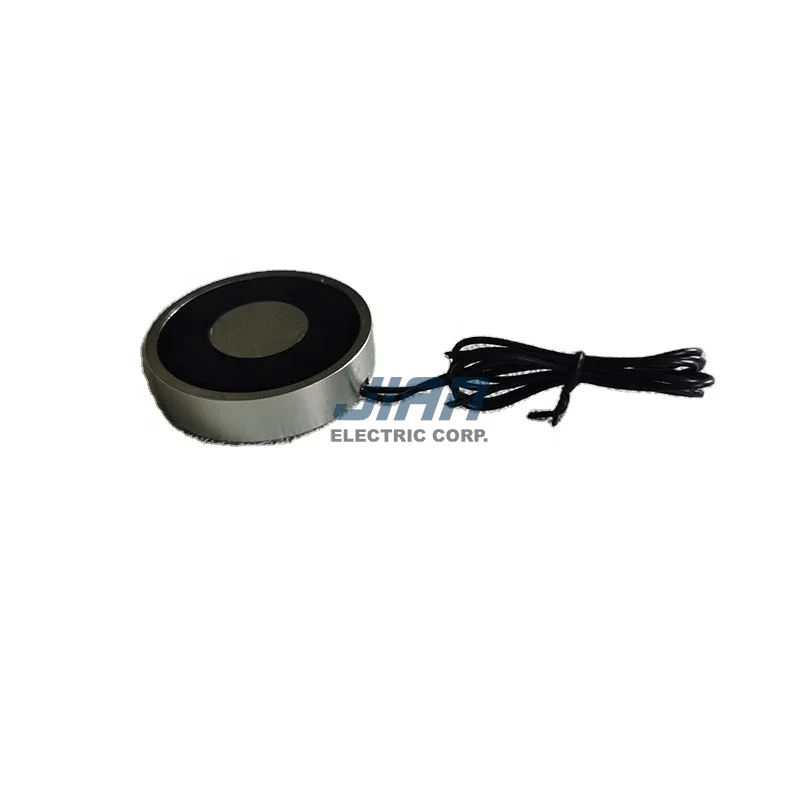

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 1

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 2

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 3

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 4

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 5

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 6

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413 7

12CDV 24VDC 4W Holding Force 50kgs (500n) Electromagnet For Lifting JSP-5413

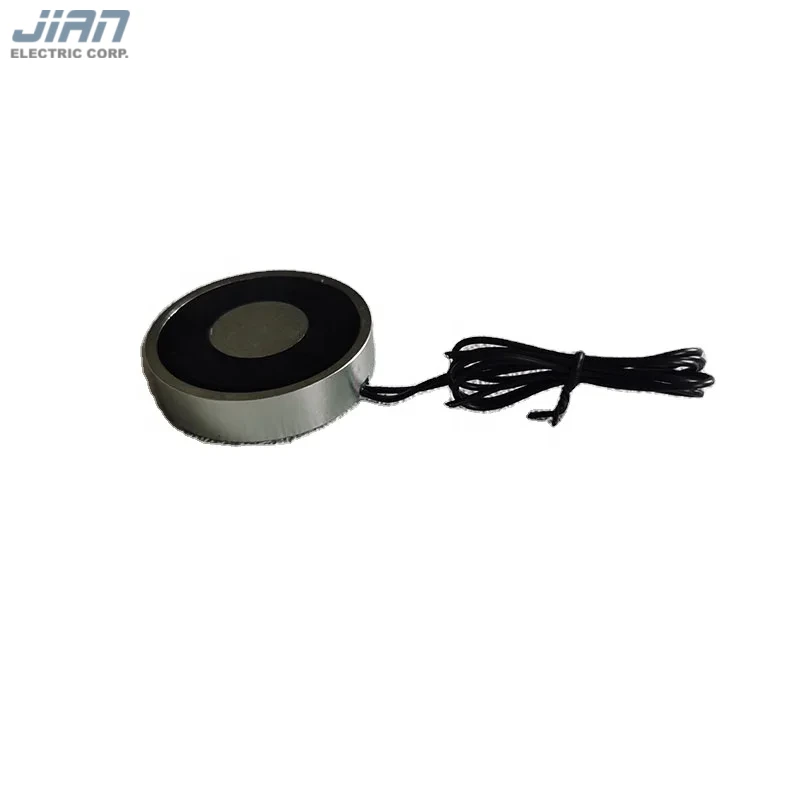

Jsp-5413 12vdc Or 24vdc 4w Holding Force 50kgs(500n) Normal Round Electromagnet For Lifting

The Jsp-5413 electromagnet is a powerful 4W device capable of holding up to 50kgs (500N) of weight at both 12VDC and 24VDC. Its normal round shape makes it suitable for lifting applications, making it an ideal choice for industrial and commercial use. With its strong holding force and versatility in power options, this electromagnet is a reliable and high-performing solution for a range of lifting needs.

Samples:

$25.0/piece | Min. order : 1 piece

Customization:

Customized logo (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets)

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):20(days),11-100(pieces):30(days),101-1000(pieces):35(days),>1000(pieces):To be negotiated(days)

shipping:

Express · Ocean freight · Land freight · Air freight

Brand Name:

JIAN

Inquiry

Write a Review

Dinension

Dia54*13

Max. Power

5.6W

Finish

Zinc plating

Power

Terminal class

B(130)

Working life

1000000times

Insulation&Protection

F Class IP65

Duty

100%

Holding force

50kgs(500N)

Voltage

12VDC or 24VDC or other voltage

After-sales Service Provided

Online support

Certification

CE,Rohs

Local Service Location

None

After Warranty Service

Online support

Warranty

1 Year

Place of Origin

Zhejiang, China

Condition

New

Core Components

Other

Warranty of core components

1 Year

Marketing Type

Ordinary Product

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Showroom Location

None

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Strong, reliable lifting magnet

Our JSP-5413 12VDC or 24VDC 4W holding force electromagnet is perfect for lifting objects up to 50kgs(500N) with a service life of 1000000 times. With a duty cycle of 100% and an anchor plate thickness of 6mm, our electromagnet offers high-quality performance for any lifting needs. Plus, with no minimum order quantity and a fast delivery time, you can count on us for all your electromagnet needs!

● High Holding Force Electromagnet

● Efficient DC 12V Power

● Customizable OEM/ODM Solution

● Quick Delivery Time

Product Display

carousel-2

carousel-5

carousel-7

Reliable, powerful, versatile, durable

High Holding Force

The Jsp-5413 electromagnet has a strong holding force of 50kgs (500n), making it suitable for lifting and holding various objects securely.

Versatile Power Supply

With a 12vdc or 24vdc power supply, this electromagnet is versatile and can be used in a variety of settings for different power requirements.

Compact and Easy Installation

Its compact and round design allows for easy installation in various applications without taking up too much space.

Energy Efficiency

The 4w power consumption of this electromagnet ensures energy efficiency, making it a reliable and cost-effective solution for lifting applications.

Versatile, Powerful Lifting Solution

The JSP-5413 12VDC or 24VDC 4W holding force electromagnet has a strong holding force of 50kgs (500N), making it suitable for lifting applications. With a duty cycle of 100% and a service life of 1,000,000 times, this electromagnet is reliable and long-lasting. The voltage options of 12VDC or 24VDC, along with a weight of 0.176kgs and insulation class B(130), provide flexibility and durability for various industrial uses.

◎ Strong Holding Force

◎ Durable and Reliable

◎ product charact 3

Application Scenario

Industrial Automation

Utilize the electromagnet in manufacturing and assembly lines to lift and hold metal components in place during production processes.

Robotics

Integrate the electromagnet into robotic arms and grippers for securely picking up and moving objects in warehouse and logistics automation.

Material Handling

Incorporate the electromagnet into conveyor systems and lifting equipment for securely transporting heavy materials and goods in distribution centers and warehouses.

Automotive Assembly

Install the electromagnet in automotive production lines to lift and position car body parts and components during assembly processes.

Material Introduction

The JSP-5413 12VDC or 24VDC 4W Holding Force 50kgs (500N) Normal Round Electromagnet offers a durable and reliable solution for lifting applications. With a service life of 1,000,000 times and a duty cycle of 100%, this electromagnet is built to withstand heavy usage. Additionally, the option for customization through OEM and ODM allows users to tailor the product to their specific needs, without any minimum order quantity requirements.

◎ JSP-5413 12VDC or 24VDC 4W Holding Force 50kgs(500N) Normal Round Electromagnet for Lifting

FAQ

What is the operating voltage for the Jsp-5413 electromagnet?

The Jsp-5413 electromagnet can operate at either 12VDC or 24VDC.

What is the holding force of the Jsp-5413 electromagnet?

The Jsp-5413 electromagnet has a holding force of 50kgs (500N).

What is the typical application for the Jsp-5413 electromagnet?

The Jsp-5413 electromagnet is often used for lifting and holding applications.

Can the Jsp-5413 electromagnet be used in outdoor or harsh environments?

The Jsp-5413 electromagnet is designed for indoor use and may not be suitable for outdoor or harsh environments.

What is the shape of the Jsp-5413 electromagnet?

The Jsp-5413 electromagnet has a normal round shape.

Is the Jsp-5413 electromagnet easy to install?

The Jsp-5413 electromagnet is designed for easy installation and can be easily integrated into existing systems.
