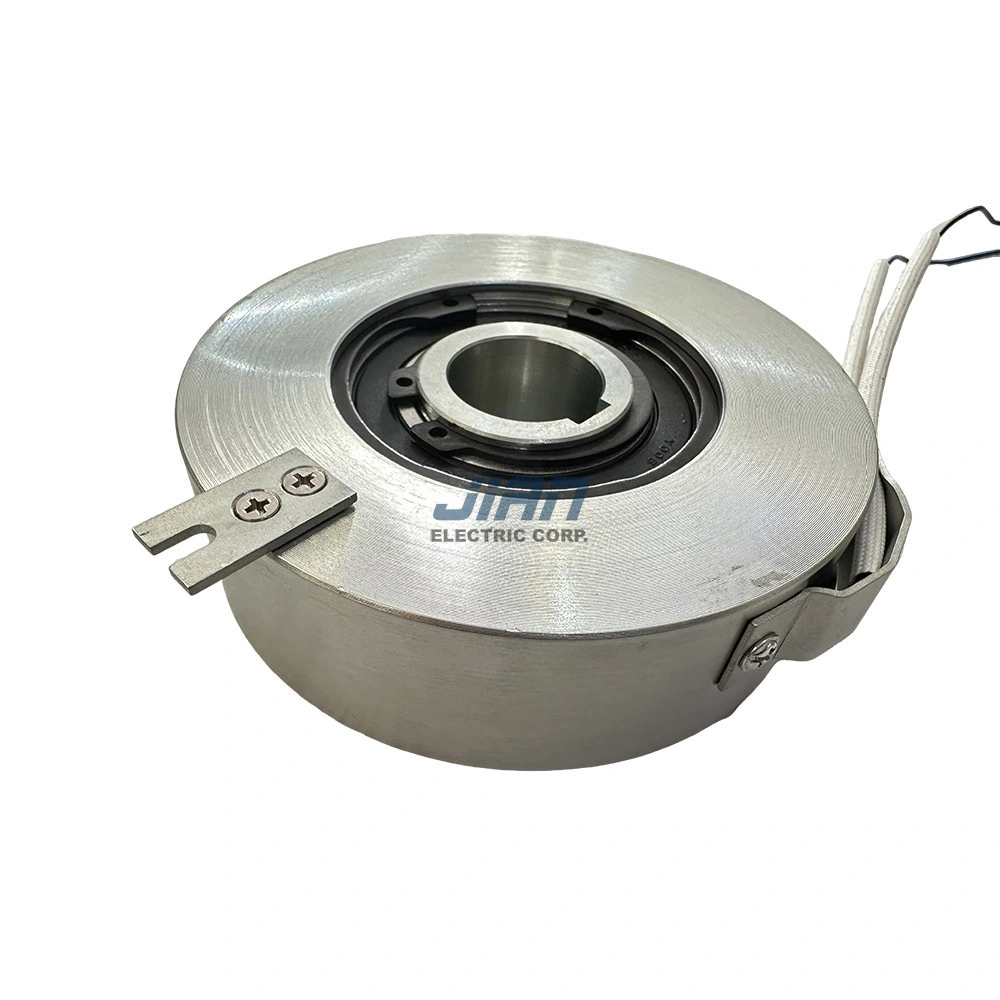

Specialties Type Clutch Electromagnet JSL-10831
Dimensions: φ107.5*35.3mm
Voltage: 24VDC
Resistance: 40Ω
Power: 12W
Suction Force: 0mm stroke, Force >50Nm
Position Ratio: 100%
Insulation Resistance Test: 100MΩ; 500VDC (at 20°C)
Product specifications are diverse and can be customized according to customer needs, providing the most suitable design and manufacturing.
Product Application
Electromagnetic clutch is a friction clutch that generates clamping force by electromagnetic force. It is an automatically executed electrical appliance. It has a simple structure, fast action, low control energy, and is easy to control from a distance. Although it is small in size, it can transmit large torque. When used as a brake control, it has the advantages of fast and smooth braking.
Therefore, it is widely used in many fields such as the automotive industry, mechanical transmission systems, engineering machinery, motor control and braking systems.
Product Advantages
● Compact design, simple structure, and easy installation.
● Excellent mechanical properties and precise magnetic control.
