Decoding the Working Principle of Linear Solenoids for Engineers

Linear solenoids are essential components in a wide range of applications across various industries, including automotive, medical, manufacturing, and aerospace. These electromechanical devices convert electrical energy into linear motion through the interaction of magnetic fields and ferromagnetic plunger dynamics. Understanding the working principles, types, and applications of linear solenoids is crucial for engineers and technical professionals.

Operating Principle of Linear Solenoids

A linear solenoid operates based on the principles of electromagnetism. When an electric current flows through a coil of wire, it generates a magnetic field around the coil. The strength of this magnetic field depends on the number of turns in the coil and the amount of current passing through it. Inside the solenoid, there is a movable plunger made of a ferromagnetic material, such as iron or steel, which is attracted or repelled by the magnetic field created by the coil.

When the current is applied to the coil, the magnetic field pulls or pushes the plunger, resulting in linear motion. The direction of the motion depends on the orientation of the magnetic field. Once the current is removed, the magnetic field collapses, and the plunger returns to its original position, usually with the assistance of a spring (if present).

Types of Linear Solenoids

Linear solenoids come in various types, each with distinct characteristics and applications.

Push/Pull Solenoids (SPP/PP)

Key Features:- Force: Up to 2,000N (in end position, energized)
- Stroke Length: Up to 30mm
- Types: Standard sizes from 11mm to 874mm diameter
- Applications: Medical, laboratory, and analytical equipment, including electrical pinch valves and various lock applications

Denotation:- Stroke Length: Up to 30mm
- Holding Force: Up to 2,000N (in end position, energized)
- Use: Can be used as push-type or pull-type linear solenoids
- Life Expectancy: Up to 50 million cycles and more
- Response Time: Fast response time (< 5ms possible, depending on size)

Tubular Solenoids (T)

Key Features:- Stroke Length: Up to 30mm
- Holding Force: Up to 80N (in end position, energized)
- Size: 13 to 38mm diameter

Super Stroke Tubular Solenoids for Semi-Proportional Control (SS)

Key Features:- Stroke Length: Up to 35mm
- Holding Force: Up to 24N (in end position, energized)
- Size: 19mm to 38mm diameter

Denotation:- Stroke Length: Up to 35mm
- Holding Force: Up to 24N (in end position, energized)
- Life Expectancy: Up to >30 million cycles
- Noise Level: Low noise (quiet operation)
- Impact Control: Controllable impact force

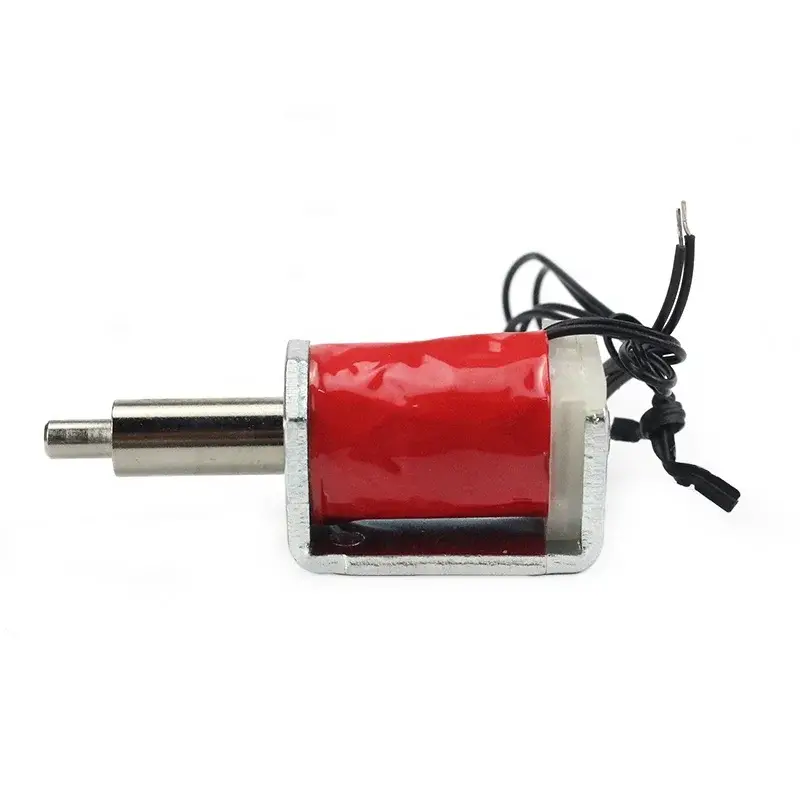

Open Frame Solenoids (SK/TO/RD)

Key Features:- Stroke Length: Up to 15mm
- Holding Force: Up to 30N (in end position, energized)
- Size: Miniature versions from 8 x 10 x 15mm

Denotation:- Stroke Length: Up to 15mm
- Holding Force: Up to 30N (in end position, energized)
- Life Expectancy: Up to 5 million cycles
- Size: Miniature versions from 8 x 10 x 15mm

Open Frame Latching Solenoids (SH1LC/R1L/T1L/SH2LC/T2L/TK2L)

Key Features:- Special Miniature Latching Solenoids: Standard dimensions from 4 x 8 x 15mm, custom designs even smaller
- Self-Holding: Provides a self-holding function with no current applied
- Force: Holding force up to >36N (in end position, de-energized)

Denotation:- Stroke Length: Up to 15mm
- Holding Force: Up to >36N (in end position, de-energized)
- Life Expectancy: Up to >5 million cycles
- Special Versions: Bistable versions available

Components of a Linear Solenoid

Coil

Description:The coil is the core component of a linear solenoid, responsible for generating the magnetic field. It is typically made from insulated copper wire wound around a cylindrical core. The number of turns and wire diameter significantly influence the performance of the solenoid. The ideal design involves a precise ratio of the coil cross-section to the magnetic circuit cross-section, ensuring optimal operation.

Plunger

Description:The plunger is a movable ferromagnetic rod, usually made of iron or steel. It moves within the solenoid under the influence of the magnetic field, producing the linear motion output. The plunger can be designed specifically for push or pull applications, depending on the intended use.

Housing

Description:The housing encloses the coil and plunger, providing protection and structural support. It can be made from various materials, including metal or plastic, based on the application requirements. The housing ensures the solenoid operates efficiently and safely in different environments.

Spring

Description:The spring is critical for returning the plunger to its original position once the current is removed. Springs can vary in stiffness and length, affecting the solenoid's performance and response time. The use of appropriate springs ensures reliable and consistent operation.

Electrical Connections

Description:Terminals or leads provide the necessary means for electrical connection to the solenoid, allowing current to flow through the coil. These connections must be robust and secure to ensure reliable operation.

Design Considerations for Linear Solenoids

Force Requirements

Description:Determine the necessary force output based on the application's load and any additional factors, such as friction or counterforces. It is crucial to select a solenoid with sufficient force capabilities to meet the specific requirements of the application.

Stroke Length

Description:Ensure the solenoid's stroke length is sufficient to achieve the desired linear movement. The stroke length is a critical factor in selecting the appropriate solenoid for the intended use.

Size and Mounting Constraints

Description:Consider the available space for installation and any mounting requirements. The size and form factor of the solenoid must fit into the designated area, and the mounting method must provide secure and stable operation.

Operating Environment

Description:Choose a solenoid with suitable materials and protection ratings for the intended operating environment, including temperature, humidity, and exposure to chemicals or contaminants. The solenoid must be designed to withstand the environmental conditions it will encounter.

Power Consumption and Heat Dissipation

Description:Evaluate the solenoid's power requirements and potential heat generation. Adequate cooling or duty cycle management may be necessary in some applications to prevent overheating and maintain performance.

Response Time

Description:Ensure the solenoid's response time meets the application's speed and precision requirements. This is particularly important in applications where quick and precise motion control is essential.

Cost

Description:Weigh the performance and features of the solenoid against its cost to determine the most suitable option for your budget. While cost is a consideration, the right solenoid might offer better performance and reliability over time, justifying any initial investment.

Applications of Linear Solenoids

Locking Mechanisms

Description:Linear solenoids are widely used in locking systems for doors, security systems, and safes. They provide a reliable mechanism for activating and releasing locking mechanisms, enhancing security and control.

Valve Control

Description:Solenoids are commonly used to regulate the flow of fluids or gases in industrial processes, HVAC systems, and medical equipment. They offer precise control over the flow, ensuring reliable operation in various applications.

Automotive Systems

Description:Linear solenoids can be found in various automotive systems, such as transmission control, fuel injection, and starter motors. They provide the necessary linear motion control for these critical systems, ensuring smooth and reliable operation.

Robotics and Manufacturing

Description:Solenoids are essential in robotic arms, conveyors, and automated systems for precise linear motion control. They provide the necessary actuation with speed and precision, enabling efficient and reliable operation in manufacturing environments.

Advantages and Disadvantages

Advantages

• Simplicity: Linear solenoids have a straightforward design with few moving parts, making them easy to understand, maintain, and repair.
• Cost-Effective: Their simple construction makes them more affordable compared to other types of actuators, such as pneumatic or hydraulic systems.
• Fast Response: Solenoids can achieve high speeds and rapid response times, making them suitable for applications requiring quick and precise control.
• Compact Size: Available in various sizes, allowing easy integration into space-constrained applications.

Disadvantages

• Limited Force and Stroke Length: Linear solenoids typically have a limited force output and stroke length compared to other actuators, which might be insufficient for certain applications.
• Heat Generation: Continuous operation can generate significant heat, potentially affecting performance and lifespan unless adequate cooling or duty cycle management is implemented.
• Power Consumption: Solenoids require a continuous flow of current to maintain their position, which can result in high power consumption, especially during extended periods of operation.

Conclusion

Linear solenoids are versatile and widely used electromechanical devices that convert electrical energy into linear motion. Their simple design, cost-effectiveness, and rapid response make them popular choices in various industries, including automotive, medical, manufacturing, and aerospace. Understanding the working principles, types, and applications of linear solenoids is essential for engineers and technical professionals. By considering factors such as force requirements, stroke length, size and mounting constraints, operating environment, and response time, you can select the most suitable solenoid for your specific application.
